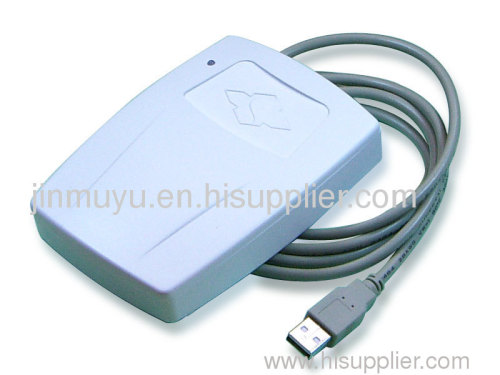

MR810 series, based on NXP PCD, are the USBPC/SC interface smart reader. The reader supports series IC cardsaccording to ISO14443A, ISO14443B, ISO15693 and ISO7816; variouscontactless IC card under international standard; especially thecontactless CPU cards under ISO14443-4. Meanwhile the reader isavailable to pass EMV2000 and PBOC 2.0 and be authenticated by manylaboratorial certifications---Visa Wave & Pay Pass (by FIME) and theBank Card Test Center. There are 2 SAM card slots in the reader whichsupport SAM cards compliant with ISO7816 (T=0 and T=1). The readersupports card-reset of various communication rate; PPSS operation aftercard-reset; SAM operation of various communication rate.

• Qualifications:

• • PCD: NXP RC531, RC632

• • Working frequency: 13.56MHz

• • RF standard: ISO14443A, ISO14443B, ISO15693

• • Operating distance: 100mm (Mifare One, typical distance)

• • Operating distance: 2 slots, (supports ISO7816 T=0 and T=1)

• • Interface: USB PC/SC

• • Power supply: DC5V

• • Power consumption: 0.9W

• • Dimension: 123mm×88mm×25mm

• • Weight: about 100g

• • Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)

• • Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
